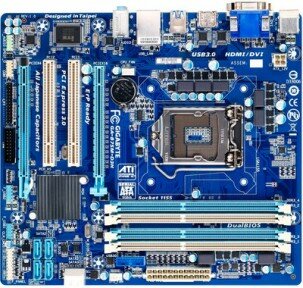

Gigabyte GA-B75M-D3H USB 3.0 Micro ATX Intel Motherboard

• LGA 1155
• Intel B75
• 4×240pin DDR3 1600/1333/1066

• CPU:
  Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^®Celeron^® processors in the LGA1155 package
  L3 cache varies with CPU

  Chipset:
  Intel^® B75 Express Chipset

  Memory:
  4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
  * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  Dual channel memory architecture
  Support for DDR3 1600/1333/1066 MHz memory modules
  * To support DDR3 1600 MHz, you must install an Intel 22nm CPU.
  Support for non-ECC memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  * To support XMP memory, you must install an Intel 22nm CPU.

  Onboard Graphics:
  Integrated Graphics Processor:
  1 x D-Sub port
  1 x DVI-D port, supporting a maximum resolution of 1920x1200
  * The DVI-D port does not support D-Sub connection by adapter.
  1 x HDMI port, supporting a maximum resolution of 1920x1200

  Audio:
  Realtek ALC887 codec
  High Definition Audio
  2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  Support for S/PDIF Out

  LAN:
  1 x Realtek GbE LAN chip (10/100/1000 Mbit)

  Expansion Slots:
  1 x PCI Express x16 slot, running at x16 (PCIEX16)
  (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
  1 x PCI Express x16 slot, running at x4 (PCIEX4)
  (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
  2 x PCI slots

  Multi-Graphics Technology:
  Support for AMD CrossFireX™ technology
  * The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX™ is enabled.

  Storage Interface:
  Chipset:
  1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
  5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices

  USB:
  Chipset:
  Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
  * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.

  Internal I/O Connectors:
  1 x 24-pin ATX main power connector
  1 x 4-pin ATX 12V power connector
  1 x SATA 6Gb/s connector
  5 x SATA 3Gb/s connectors
  1 x CPU fan header
  1 x system fan header
  1 x front panel header
  1 x front panel audio header
  1 x S/PDIF Out header
  1 x USB 3.0/2.0 header
  2 x USB 2.0/1.1 headers
  1 x serial port header
  1 x parallel port
  1 x Trusted Platform Module (TPM) header
  1 x Clear CMOS jumper

  Back Panel Connectors:
  1 x PS/2 keyboard/mouse port
  1 x D-Sub port
  1 x DVI-D port
  1 x HDMI port
  2 x USB 3.0/2.0 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks (Line In/Line Out/Microphone)

  I/O Controller:
  iTE I/O Controller Chip

  H/W Monitoring:
  System voltage detection
  CPU/System temperature detection
  CPU/System fan speed detection
  CPU overheating warning
  CPU/System fan fail warning
  CPU/System fan speed control
  * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

  BIOS:
  2 x 64 Mbit flash
  Use of licensed AMI EFI BIOS
  Support for DualBIOS™
  PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

  Unique Features:
  Support for @BIOS
  Support for Q-Flash
  Support for Xpress Install
  Support for Xpress Recovery2
  Support for Auto Green
  Support for ON/OFF Charge
  Support for Q-Share
  Support for LAN Optimizer (Intelligent optimization network management tool)

  Bundle Software:
  Intel^® Rapid Start Technology
  Intel^® Smart Connect Technology

  Operating System:
  Support for Microsoft^® Windows 7/XP

  Form Factor:
  Micro ATX Form Factor; 24.4cm x 22.0cm
