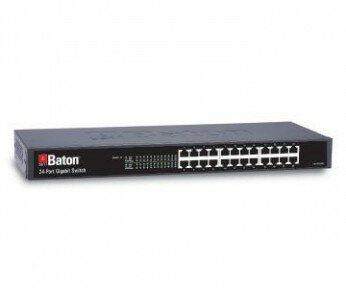

iBall Baton 24-Port 10/100M + 2-Port Gigabit Rackmount Switch

• Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards

• 24 10/100Mbps + 2 10/100/1000Mbps auto-negotiation RJ45 ports, supporting auto MDI/MDIX

• Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode

• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

• 8.8Gbps switching capacity

• Support MAC address auto-learning and auto-aging

• Store and forward switching method

• Standard 19-inch rack-mountable metal case

• LED indicators for monitoring power, link, activity and speed

Specifications:

Standards IEEE 802.3 10Base-T, IEEE 802.1p IEEE 802.3u 100Base-TX Topology Star Protocol CSMA/CD Data Transfer Rate
Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex) Network Media ( Cable )
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m) Fibering and Transmitting speed 100Mbps：148800pps 1000Mbps: 1488000pps Link/Act, 10M/100M, 1000M Number of Ports 24 10/100Mbps Auto-Negotiation ports
LED indicators
Power, Link/Act, 100Mbps
Transfer Method
Store-and-Forward
MAC Address Learning
Auto Ageing and Auto Learning
MAC Address Table
8k
Buffer Memory
2.5Mb
Frame Filtering and Forward Rate
10Mbps: 14880pps, 100Mbps: 148800pps
Power Supply
100-240V~ 50-60Hz (Internal universal power supply)
Safety & Emission
FCC, CE, ROHS
Dimension ( WxDxH ) 17.3 x 7.1 x 1.7 in.(440 x 180 x 44 mm) Environment Operation Temperature：0ºC-40ºC；Store Temperature：-40ºC-70ºC Operation Humidity：10%-90% RH Non-condensing; Store Humidity：5%-90% RH Non-condensing
