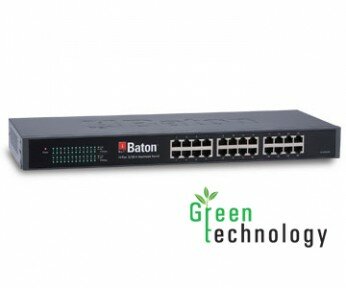

iBall Baton 24 Port Gigabit Switch iB LRS324G

• Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards

• 24 10/100/1000Mbps Auto Negotiation RJ45 ports, supporting Auto MDI/MDIX

• Supports IEEE 802.3x flow control for full duplex mode and back pressure for half-duplex mode

• Non-Blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

• 48Gbps switching capacity

• Supports IEEE802.1p QoS

• Supports MAC address auto-learning and auto-aging

• Store and forward switching method

• Standard 19-inch Rack-mountable metal case

• LED indicators for monitoring power, link, activity and speed

Specifications:

Standard IEEE 802.3 , IEEE 802.3u , IEEE 802.3ab, IEEE 802.1p
Port
24 10/100/1000M Auto-Negotiation RJ45 ports supporting
Auto MDI/MDIX
Network Media 10Base-T：Cat. 3 or above UTP
100Base-TX：Cat.5 UTP
1000Base-T: Cat.5 UTP
Filter and transmission
rate
10Mbps：14880pps
100Mbps：148800pps
1000Mbps: 1488000pps
Uplink Any port (support Auto-MDI/MDIX function)
Transmits Method Store-and-Forward
MAC Address Learning Auto Ageing and Auto Learning
MAC Address Table 8k
Buffer Memory 2Mb
LED Indicator - Each
Port
Link/Act, 10M/100M, 1000M
Dimension (L x W x H) 11.6 x 7.1 x 1.7 in.(294 x 180 x 44 mm)
Environment
Operation Temperature：0ºC-40ºC；Store
Temperature：-40ºC-70ºC
Operation Humidity：10%-90% RH Non-condensing;
Store Humidity：5%-90% RH Non-condensing
Power Input: 100-240VAC, 50/60Hz
Safety & Emission FCC, CE, ROHS
